Fyxation Eastside X

Fyxation Eastside X
  • Color: Blue Steel
  • Color: Chrome Red
  • Color: Gold
  • Color: Matte Black
  • Color: Chrome Blue
$549.00 - $549.99
Please select options

Details

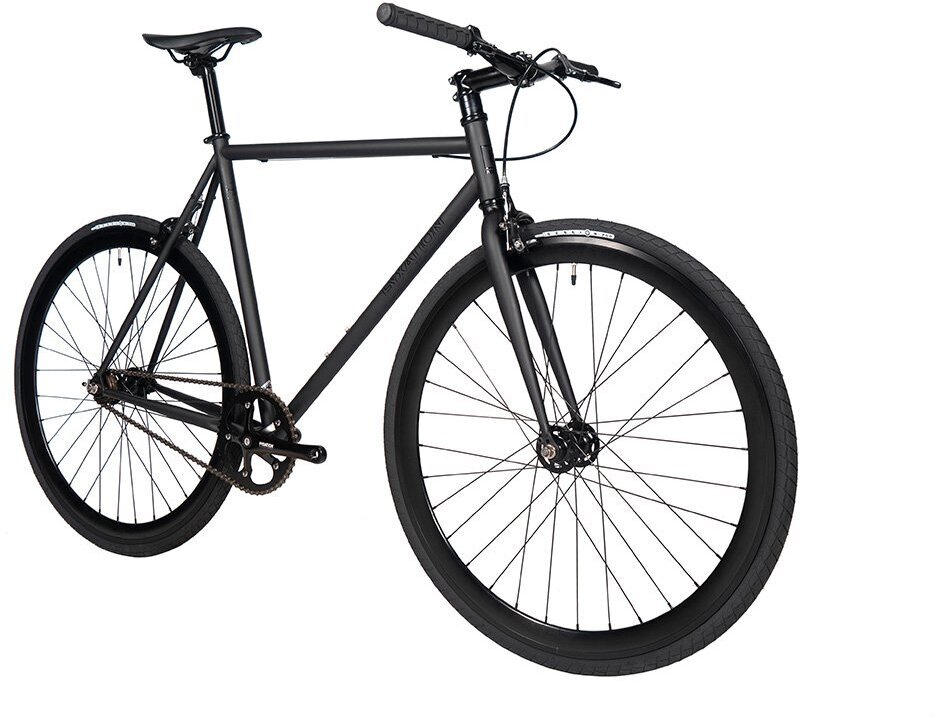

The Eastside is built using 4130 chromoly steel for both the frame and the fork, which means this beauty is light and strong. We use only sealed bearing hubs in our wheels which gives the Eastside a smooth ride and is something you typically find in higher-end track and road bikes. The Eastside uses our go-anywhere Session 700 tires which were originally introduced by Fyxation in 2009 and are known around the world for their durability and longevity. Finally, all Fyxation bikes ship with front and rear brakes! While this may seem silly to point out, most fixies and single speeds on the market ship with only one brake which is both unsafe and forces you to spend extra money adding parts after your initial purchase.

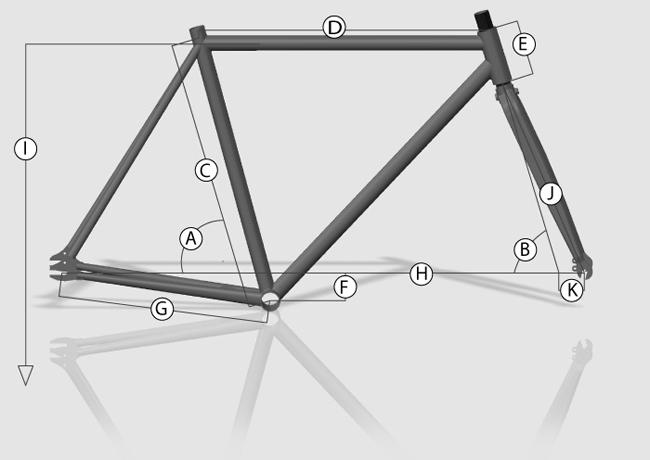

Geometry

FRAME SIZE 46cm 49cm 52cm 55cm 58cm

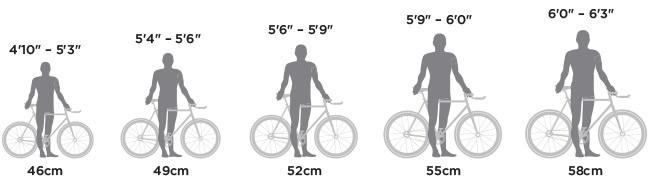

Recommended Height 4'10" - 5'3" 5'4" - 5'6" 5'6" - 5'9" 5'9" - 6'0" 6'0" - 6'3"
Seat Tube Angle (degree) 75.0 75.0 75.0 75.0 75.0
Head Tube Angle (degree) 70.5 73.0 73.0 73.0 73.0
Seat Tube Length 460mm 490mm 520mm 550mm 580mm
Top Tube Length 510mm 530mm 535mm 560mm 580mm
Head Tube Length 90mm 95mm 105mm 130mm 159mm
BB Drop 60mm 60mm 60mm 60mm 60mm
Chainstay Length 381mm 400mm 400mm 400mm 400mm
Wheelbase 957mm 972mm 972mm 979mm 993mm
Standover Height 27.5in 30in 31in 32in 33in
Fork Length 365mm 380mm 380mm 380mm 380mm
Fork Rake 38mm 38mm 38mm 38mm 38mm

Specs

Frame Track Geometry, Full 4130 Chromoly Eastside Frame/Fork. Two Tone Paint
Rims 40mm Deep Dish, Double Wall, 32H, Machined Sidewall
Spokes Stainless 2.0
Tires Fyxation Session 700x28C
Bottom Bracket Neco Sealed Bearing
Crankset Fyxation Alloy Track Crank, 46T, Ano. Finish
Chainrings 46T
Cassette/Freewheel 17T
Brakes Promax Ano. Finish
Brake Levers Promax Ano. Finish
Handlebars Rise Bars, 31.8
Tape/Grips Track Grips
Stem Alloy threadless, 31.8mm clamp, Length: 49, 52cm frames = 80mm / 55, 58cm frame = 100mm
Headset Neco Loose Ball, ED Black
Seatpost Alloy Post, Ano. Finish
Saddle Performance Saddle
Pedals Wellgo Alloy Cage Pedal w/Reflector
Accessories & Extras Decals: Clear coated transfer decals (non-removable)

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blue Steel / 46cm 817815013800 EC3223
Blue Steel / 49cm 817815013817 EC3224 210000013766
Blue Steel / 52cm 817815013824 EC3225
Blue Steel / 55cm 817815013831 EC3226 210000013765
Blue Steel / 58cm 817815013848 EC3227 210000013764
Chrome Red / 46cm
Chrome Red / 49cm 817815013855 EC3228 210000015442
Chrome Red / 52cm 817815013862 EC3229
Chrome Red / 55cm 817815013879 EC3230 210000015334
Chrome Red / 58cm 817815013886 EC3231
Gold / 46cm
Gold / 49cm 817815013893 EC3232 210000013771
Gold / 52cm 817815013909 EC3233 210000013770
Gold / 55cm 817815013916 EC3234 210000013769
Gold / 58cm 817815013923 EC3235 210000013768
Matte Black / 46cm 817815013565 EC2999
Matte Black / 49cm 817815013572 EC3000 210000014708
Matte Black / 52cm 817815013589 EC3001 210000014706
Matte Black / 55cm 817815013596 EC3002 210000014704
Matte Black / 58cm 817815013602 EC3003
Chrome Blue / 46cm
Chrome Blue / 49cm
Chrome Blue / 52cm
Chrome Blue / 55cm 817815015217 210000015323
Chrome Blue / 58cm
