Yuba Kombi E5

Yuba Kombi E5
  • Color: Silver
  • Color: Orange
$3,149.00
Color:
Size: One Size
Please select options Unavailable
Order now and pick up in-store for free.* Some bikes and other items can ship. Call 215-425-4672 for details.

Details

Leave The Car Keys At Home!

Meet the Kombi E5. Based on our top-selling Kombi "compact" longtail cargo bike, this new electric-powered version is designed principally for flat terrain riding but able to handle big cargo loads.

The Kombi E5 boasts a host of features from Shimano — a high-quality and high-performance component manufacturer for different types of bicycles globally — all at a competitive price. It's powered by Shimano's lightest E-bike system: the STEPS E5000 mid-drive motor and its 418 Wh battery. Key to riding safety is powerful braking, and the Shimano Alivio hydraulic disc brakes will inspire confidence in all conditions.What a Kombination!

The heart of this high-tech bike is the Yuba in-house designed chromoly-steel frame, featuring Yuba's proven Stay Steady Technology (found on ALL Yuba compact, mid-tail and long-tail bikes), that is stable, sturdy and built to last. You'll likely be riding it more than you use your car - and doing your part for a cleaner, healthier planet!

The Kombi E5 can handle up to 440lbs of cargo—personalize your ride with a great range of add-ons for hauling the kids, or gear, or for the daily ride to work - then surprise everyone by parking it vertically to save space!

Features:
- Sturdy, Stay-Steady Chromoly steel frame for stability, comfort & reliability
- Shimano Steps E5000 motor & 418 Wh battery
- Shimano RD M2000 derailleur & 9-Speed 11-36 Cassette
- Shimano Alivio hydraulic disc brakes
- Maxxis Hookwrom Tires 24 x 2.5 puncture-resistant
- Fits riders 5' - 6'5" (1.52m - 1.95m)

Included:
- Super stable Double kickstand
- Hi-Visibility LED lights
- Front fender + rear wheelskirt - stay clean and safe!
- Deflopilator for steering stability
- Flat pedals
- 2-year limited warranty

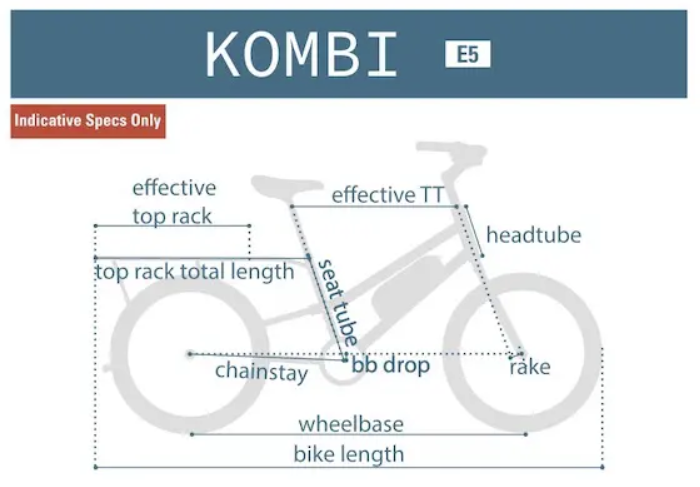

Kombi Geo Chart

Geometry Chart:
One Size
Effective Top Tube 620mm
Bike Length 1910mm
Chainstay 568mm
Bottom Bracket Drop 17mm
Fork Rake 55mm
Headtube Angle 71°
Headtube Length 175mm
Effective Top Rack Length 600mm
Seat Tube Angle 71°
Seat Tube Length 420mm
Top Rack Total Length 785mm
Wheelbase 1240mm

Specs

Frame Kombi V1 24" Cr-Mo w/Disc Tab
Fork Kombi V1 Cr-Mo 1.5" Threadless w/Disc Tab
Rims Alloy Double Wall (36H Front, 36H Rear)
Hubs Threaded Loose Ball Bearing
Tires Maxxis Hookworm 24 x 2.50"
Crankset Shimano FC-E5010 170mm
Shifters Shimano Altus SGS 9-speed Trigger Shifter
Rear Derailleur Shimano RD-M2000
Cassette/Freewheel Shimano 11-36T 9-speed
Chain KMC E9
Brakes Shimano Alivio or Clarks M2
Rotors Shimano or Clarks 180mm
Brake Levers Shimano Alivio or Clarks M2
Handlebars Yuba 31.8mm Riser Handlebar
Tape/Grips Yuba Ergo Grip
Stem 1-1/8" Adjustable Stem 100mm
Headset Semi-cartridge 1-1/8" threadless
Seatpost 30.9mm Aluminum 400mm
Saddle Yuba City Saddle
Pedals Alloy Flat
Accessories & Extras Bell, Deflopilator, Front/Rear LED lights, Stand Together
Motor Shimano STEPS E5000 250W
Battery 36v 418Wh

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Silver / One Size 854964007755 EL-KB20SV 210000013970
Orange / One Size 854964007748 EL-KB20OR 210000014122
